MIL-DTL-62460E

NOTES:

1. To obtain 15 gal/min flow into port L at same time as supplying 200 psi to port M,

close valve A as required to develop 200 psi pressure drop across valve A at

15 gal/min flow.

2. To vent port M, close valve B and open valve C.

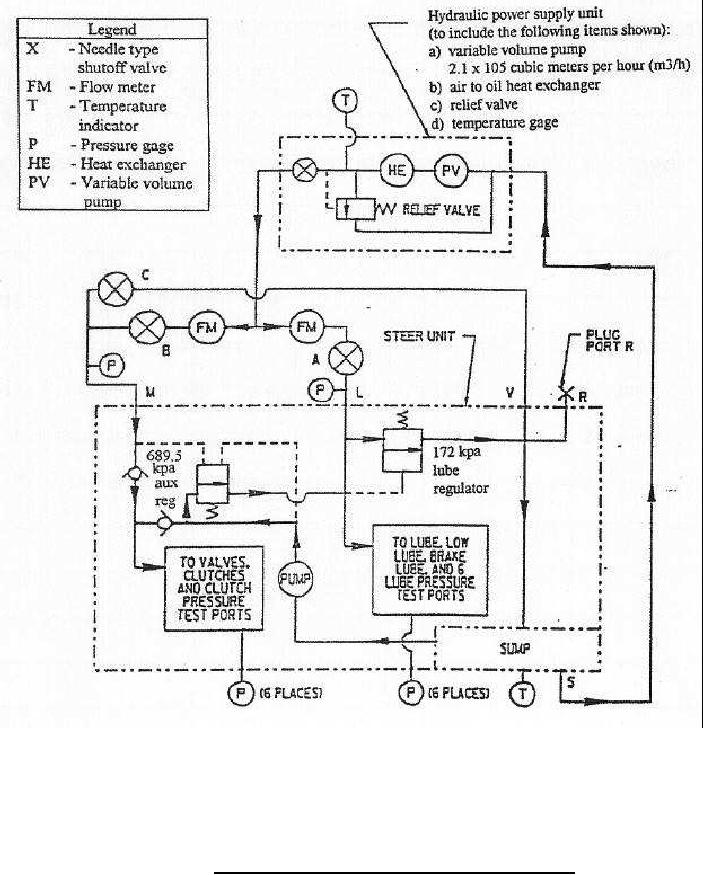

FIGURE 2. Example of hydraulic schematic for steer unit tests.
