MIL-DTL-45334E
0.335 ±0.015 DIA 2 Holes
See Note 6
1.08
±0.11
5.38
MAX
2.63
MAX
1.13
2.31
3.31
Part Identifying Number (PIN)
Prior MS part number
Drawing number
M45334-10
MS53006-1
10900525
NOTES:
1. Pressure settings: Governors shall be capable of adjustment within a pressure range of
85 to 140 psi (586 to 965 kPa) cut-out pressures.
2. Unless otherwise specified, governors shall be factory preset to cut-in at 105 to
110 psi (723 to 758 kPa), and cut-out at 120 to 140 psi (827 to 965 kPa).
3. Governors shall have a minimum of one (1) reservoir port and two (2) unloader ports,
additional ports shall be optional.
4. All ports, except one (1) reservoir and one (1) unloader, shall be fitted with metallic
dryseal (NPTF) pipe plugs. Unplugged ports shall be fitted with closures to prevent
intrusion of dust and moisture and to prevent damage to threads.
5. Provision shall be made for governor to exhaust to atmosphere.
6. Governors shall have a minimum of two (2) mounting holes located as shown.
Additional mounting holes shall be optional.
7. Port identification shall be marked with letters of 0.09 minimum height by means of
steel stamping, casting, or molding.
8. All ports shall be tapped 1/8-27 NPTF.
9. Unless otherwise specified, dimensions are in inches. Tolerance: +1/64 on fractions.

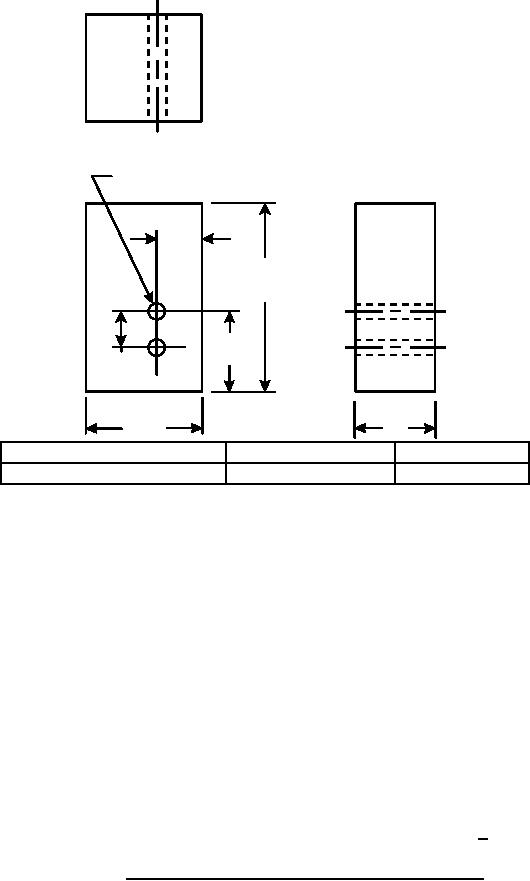

FIGURE 4. Governor assembly: air brake for tactical vehicles.
10
