MIL-DTL-14055 Cup, Hydraulic Brake Actuating Cylinder: Synthetic RubberThis specification covers molded cups, 2 inches in diameter and under, compounded from high temperature resistant rubber for use in hydraulic actuating cylinders employing hydraulic brake fluid of non-mineral oil type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-DTL-14055G

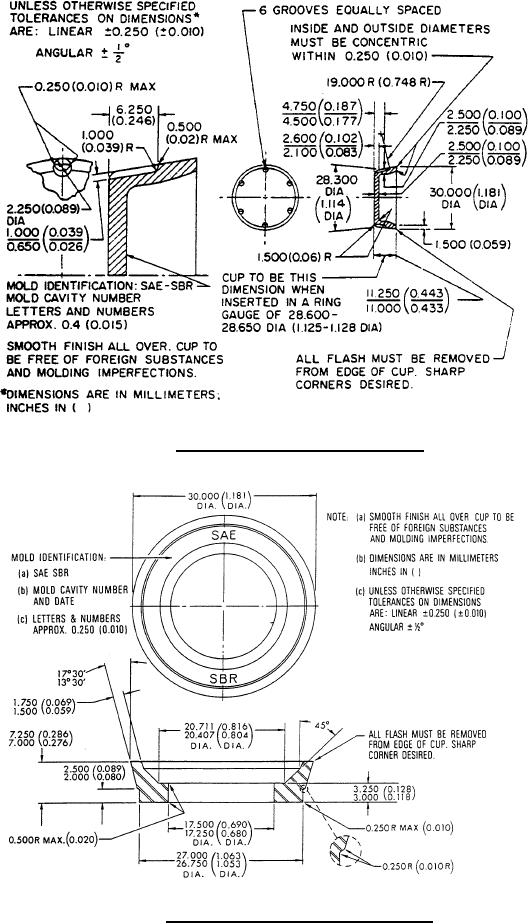

FIGURE 5. SAE test cup primary master cylinder.
FIGURE 6. SAE test cup secondary master cylinder.
17
