A-A-52523
|
D PIN |
Former MS Part Number |
Capacity (in3) |
A |
B |
C 1/ |
D 1/ |
E 1/ |
F 1/ |
G 1/ |
|
A52523-1 |
MS500093-1 |
1760 |
9.50 |
27.0 |
3/8-18 |
3/8-18 |
-- |
1/4-18 |
-- |
|
A52523-2 |
MS500093-2 |
650 |
6.88 |
19.0 |
-- |
3/8-18 |
-- |
-- |
1/4-18 |
|
A52523-3 |
MS500093-3 |
830 |
6.88 |
24.0 |
-- |
-- |
1/4-18 |
1/4-18 |
-- |
|
A52523-4 |
MS500093-4 |
940 |
6.88 |
27.0 |
-- |
-- |
1/4-18 |
1/4-18 |
-- |
|
A52523-5 |
MS500093-5 |
1040 |
8.00 |
22.5 |
3/8-18 |
3/8-18 |
-- |
1/4-18 |
-- |
|
A52523-6 |
MS500093-6 |
845 |
6.88 |
24.0 |
3/8-18 |
3/8-18 |
-- |
1/4-18 |
-- |
|
A52523-7 |
MS500093-7 |
1040 |
8.00 |
22.5 |
3/8-18 |
3/8-18 |
-- |
1/4-18 |
-- |
|
A52523-8 |
MS500093-8 |
1400 |
9.50 |
21.5 |
-- |
-- |
3/8-18 |
1/4-18 |
-- |
|
A52523-9 |
MS500093-9 |
1760 |
9.50 |
27.0 |
|
|
-- |
-- |
3/8-18 |
|
A52523-10 |
MS500093-10 |
940 |
7.06 |
27.0 |
3/8-18 |
3/8-18 |
-- |
1/4-18 |
-- |
1/ NPTF
NOTES:
1. Dimensions are inches and are for engineering reference only.
2. This CID is not intended to limit construction to features other than as shown herein by dimensions, notations, and referenced documents.

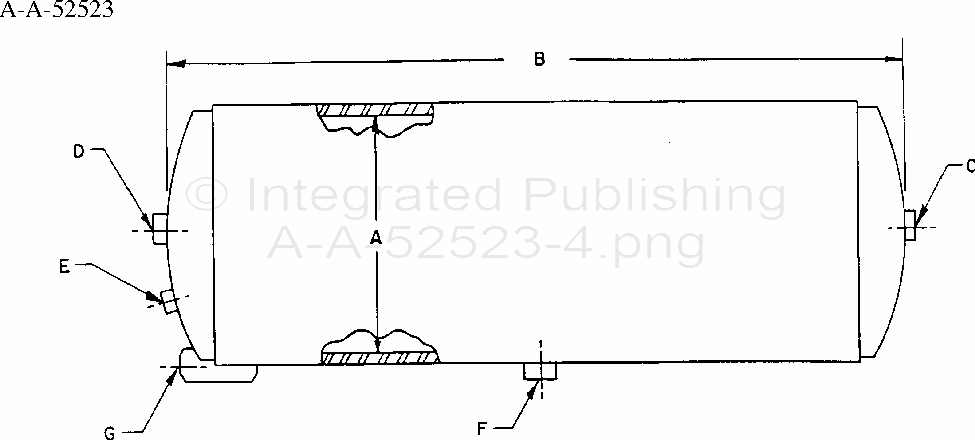

FIGURE 1. Tank, pressure: air brake.
