A-A-521688
inch |
mm |
inch |
mm |
inch |
mm |
0.10 |
2.54 |
0.375 |
9.53 |
0.62 |
15.75 |
0.12 |
3.05 |
0.463 |
11.76 |
1.00 |
25.4 |
0.17 |
4.32 |
0.468 |
11.89 |
1.75 |
44.45 |
0.19 |
4.83 |
0.5 |
12.7 |
2.25 |
57.15 |
0.25 |
6.35 |
0.555 |
14.1 |
2.50 |
63.5 |
0.37 |
9.40 |
0.56 |
14.22 |
10.12 |
257.05 |
PIN |
MS PIN |
Former Legacy PIN |
"A" DIM |
"8" DIM |
A-A-52168-1 A-A-52168-2 A-A-52168-3 A-A-52168-4 A-A-52168-5 A-A-52168-6 A-A-52168-7 |
MS53060-1 MS53060-2 MS53060-3 MS53060-4 MS53060-5 MS53060-6 MS53060-7 |
7049884 7361602 8735521 8735522 8735583 8741790 |
44 48.88 50 53 54 59.50 51.88 |
28 30.38 34 34.25 38 40.75 35.88 |
Notes: Unless otherwise specified:
1.Dimensions are in inches.
2.Tolerances are ± .03
3.Asterisk indicates a minimum dimension

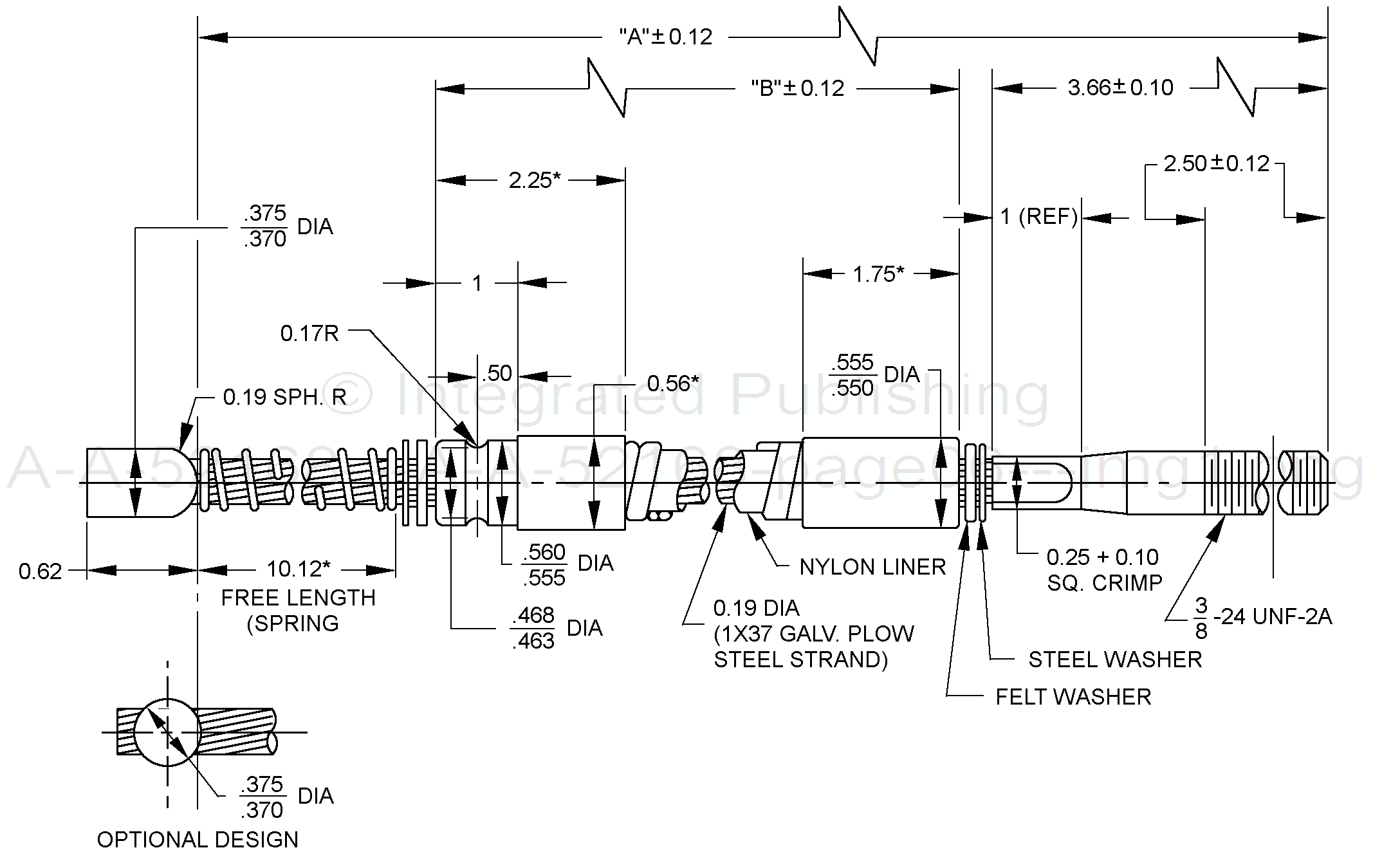

FIGURE 1. Dash numbers and dimensions.
